Tank Sloshing CFD Analysis

The completed campaign verifies the first sloshing mode against theory, resolves the forced-roll response from 16–26 seconds, adds a stationary baseline and sectional wall loads, and publishes complete-cycle fields plus pressure-resolved QA near the response maximum.

Overall dispositionUseful for response screening, numerical verification, and aggregate/sectional load review. Not yet a vessel-level anti-roll assessment.

What was analyzed?

A partially filled rectangular tank was evaluated with VOF CFD. Seven free-decay cases test mesh and timestep sensitivity against the analytical first-mode frequency. Thirteen forced-roll records cover 16–26 seconds, targeted 21–25 second refinement, medium/fine comparison, pressure QA, and sectional loads. One no-roll run establishes the numerical baseline.

21accepted CFD cases
7free-decay verification cases
13forced-roll records
7case-specific 1080p videos

What the results establish

1

The first-mode frequency is reproduced consistently

Across the published mesh and timestep cases, measured frequency differs from the analytical target of 0.758054 Hz by 0.2964–0.3264%. The finest 25,600-cell case gives 0.755807 Hz.

Use: this supports the VOF model for natural-frequency prediction. The convergence sequence is monotonic but not demonstrably asymptotic, so the residual should not be represented as a formal high-order grid-convergence result.

2

Refinement resolves a broad maximum with a local medium-mesh peak at 23 seconds

Normalized liquid-level response increases from 0.190 m/deg at 16 s through 0.22071 at 22 s to 0.22119 m/deg at 23 s, then decreases to 0.22074 at 24 s, 0.21946 at 25 s, and 0.217 at 26 s. The fine 24 s case gives 0.22145 m/deg, confirming mesh sensitivity is comparable to the small period-to-period differences.

Use: treat 22–24 seconds as a broad governing region; 23 seconds is the sampled medium-mesh maximum, not a universal tank optimum.

3

Aggregate roll moment remains high through 24–26 seconds

Roll-moment amplitude normalized by roll angle rises from 1.49 MN·m/deg at 16 s to approximately 1.94 MN·m/deg at 24–26 s. The level-response maximum and moment maximum therefore need not occur at exactly the same period.

Use: period selection depends on the response quantity governing the engineering decision.

4

The 24 second fine mesh changes response modestly

At 24 seconds, the medium and fine cases give liquid-level amplitudes of 1.1037 m and 1.1124 m, while aggregate roll moment changes from 9.673 MN·m to 9.815 MN·m.

Use: response magnitude is relatively stable across the published medium/fine comparison, but this single comparison does not replace a full asymptotic convergence study.

Published period sweep

The principal result is present directly in the page, so it remains visible without JavaScript or external data loading.

0.2220.1850.22119 m/deg · 23 s161820222426forcing period (s) · shaded band = 22–24 s broad maximum
Normalized liquid-level response (harmonic amplitude per roll degree). The sampled medium-mesh maximum is at 23 s within a broad 22–24 s plateau; aggregate roll moment keeps rising through 24–26 s (see table below).
Final-three-cycle harmonic response normalized by forcing roll amplitude
PeriodLevel responseRoll-moment responseEngineering reading
16 s0.190 m/deg1.495 MN·m/degLower end of published response band
18 s0.205 m/deg1.687 MN·m/degResponse increasing
20 s0.216 m/deg1.821 MN·m/degApproaching broad maximum
21 s0.21882 m/deg1.86463 MN·m/degTargeted refinement
22 s0.22071 m/deg1.89958 MN·m/degBroad plateau
23 s0.22119 m/deg1.92120 MN·m/degSampled medium-mesh level maximum
24 s0.22074 m/deg1.93463 MN·m/degFine, pressure, and sectional comparisons available
25 s0.21946 m/deg1.94061 MN·m/degLevel response descending
26 s0.217 m/deg1.937 MN·m/degLevel response reduces; moment remains high

Values are derived from the immutable release’s final-three-cycle harmonic metrics. Open the interactive study to select curves and export plots.

Representative completed cases

These are case-specific CFD snapshots and synchronized response graphs. The new 22 s and fine 24 s media cover one complete final forcing cycle with no temporal interpolation; legacy 16 s and 26 s media remain shorter final-window context.

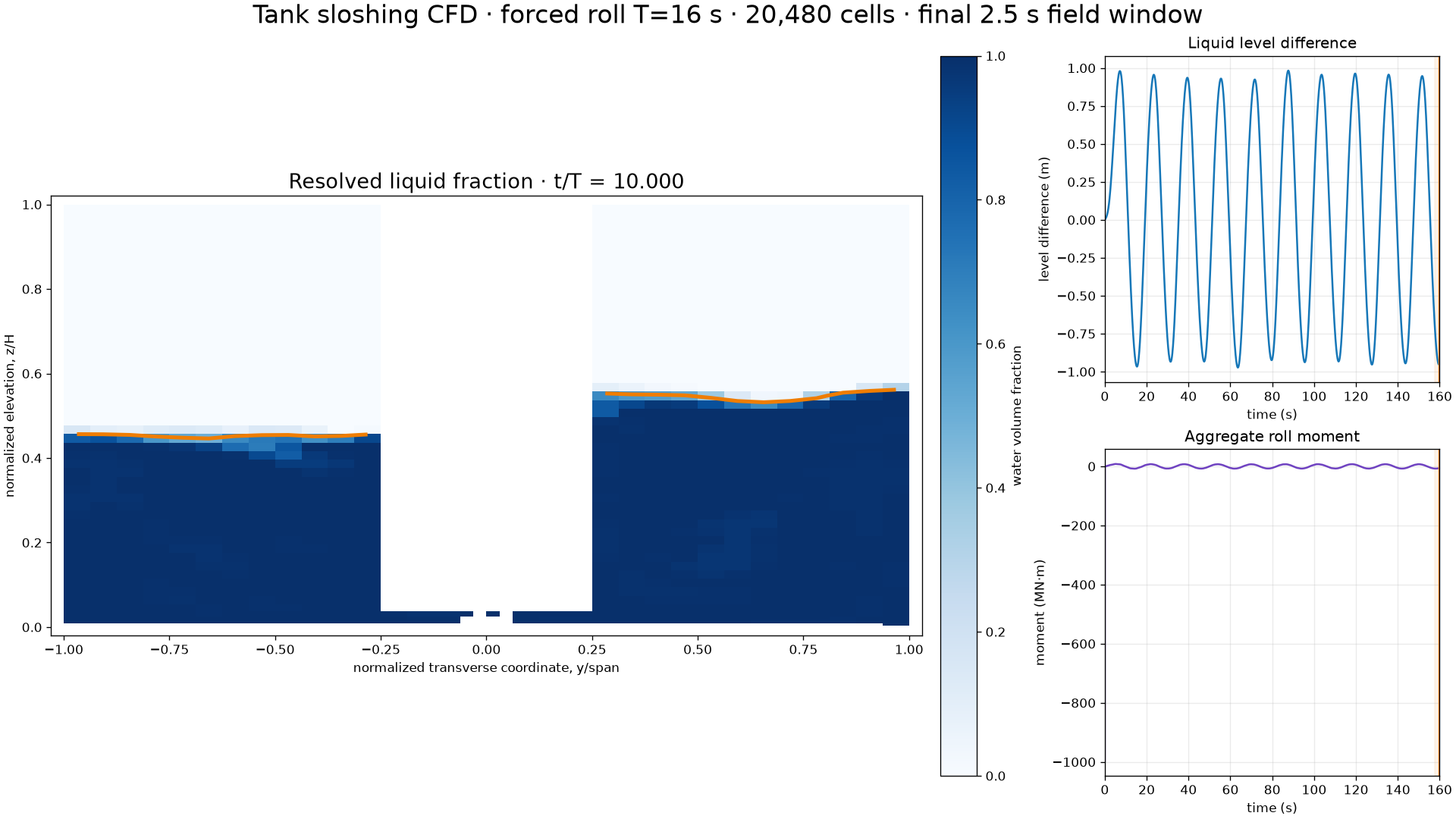

Case-specific liquid-fraction field and response graphs for the 16 second forced-roll case
16 s · medium meshCase-specific CFD evidence · open 1080p video

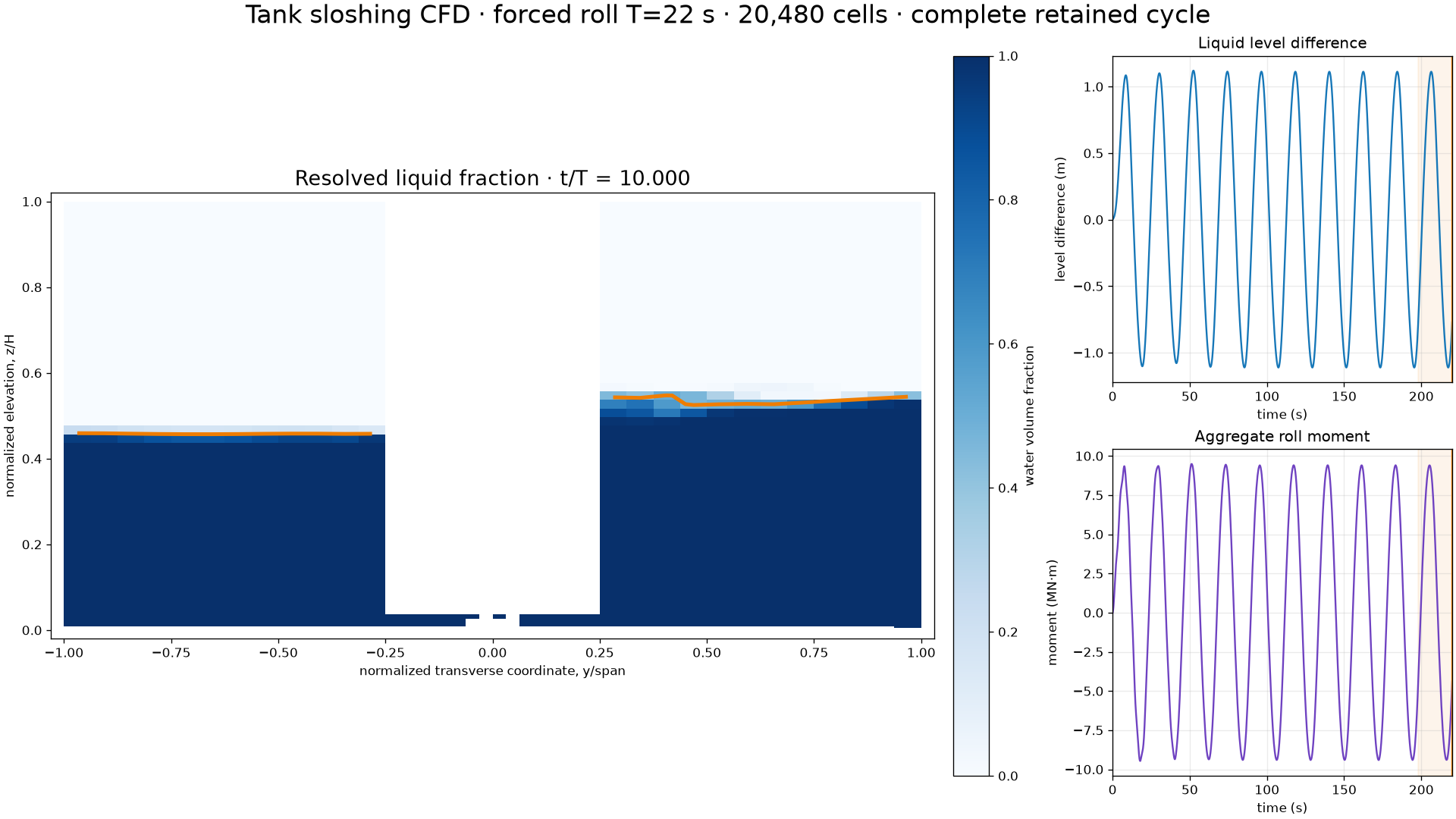

Complete-cycle liquid-fraction field and response graphs for the 22 second forced-roll case
22 s · medium meshComplete final forcing cycle · no interpolation

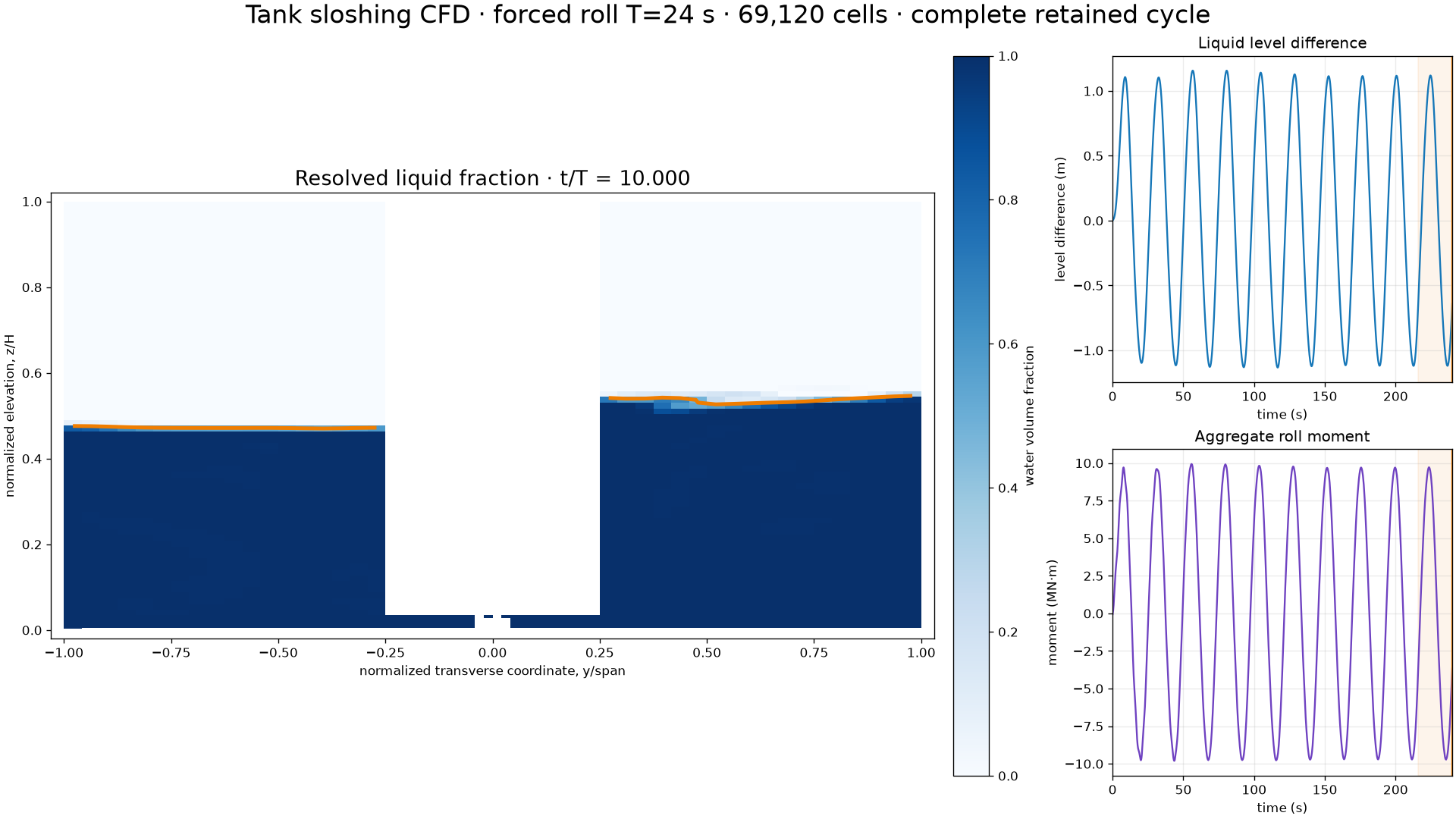

Complete-cycle liquid-fraction field and response graphs for the fine-mesh 24 second case
24 s · fine mesh · Co 0.25 targetComplete cycle · pressure and Courant QA

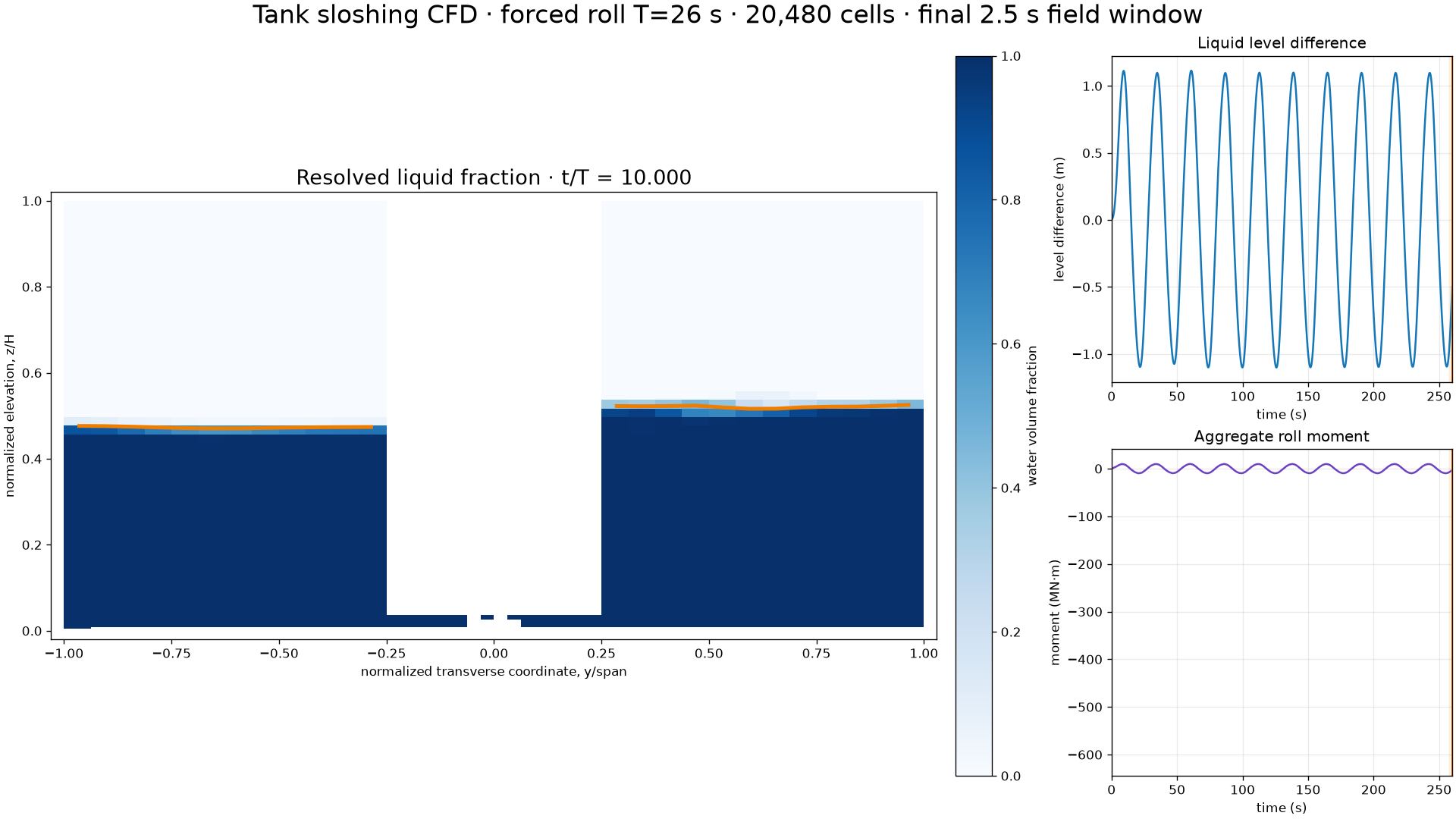

Case-specific liquid-fraction field and response graphs for the 26 second forced-roll case
26 s · medium meshCase-specific CFD evidence · open 1080p video

Why the result is qualified rather than simply marked “passed”

Frequency verification

The mesh and timestep series remains within approximately 0.3% of the analytical target. This is the strongest validation statement supported by the public release.

Open validation →

Courant refinement

The new pressure-resolved fine case reduced the observed maximum Courant number from 0.478 to 0.326. It completed and converged, but still exceeded its tighter configured target of 0.25.

Open detailed QA →

Evidence coverage

Inputs, QA, bounded histories, complete-cycle media, pressure envelopes, and sectional loads are published where case-specific evidence exists. Simpler validation cases remain intentionally concise.

Review coverage →

Engineering disposition

Supported

  • First-mode frequency verification
  • Period-dependent forced-roll response and 21–25 s refinement
  • Medium/fine response comparison at 24 s
  • Stationary numerical baseline
  • Aggregate and left/right sectional loads
  • Complete-cycle fields and detailed pressure evidence for representative cases

Not established

  • Three-dimensional end-wall and local impact effects beyond the disclosed model
  • Response across other fill levels or roll amplitudes
  • Vessel-level anti-roll performance
  • Private geometry reconstruction
Recommended next analysisExtend the governing 22–24 second region across fill level and roll amplitude, then add local impact-resolution and vessel-motion coupling where design decisions require them.
