Overnight Parametric Engineering
Send a design matrix at 6 PM. Get hundreds of validated, auditable results by morning. Every calculation traces to its international standard. Powered by digitalmodel — open-source Python for offshore engineering.
Live Engineering Demos
Each demo runs a real parametric analysis, generates validated results, and produces an auditable HTML report.

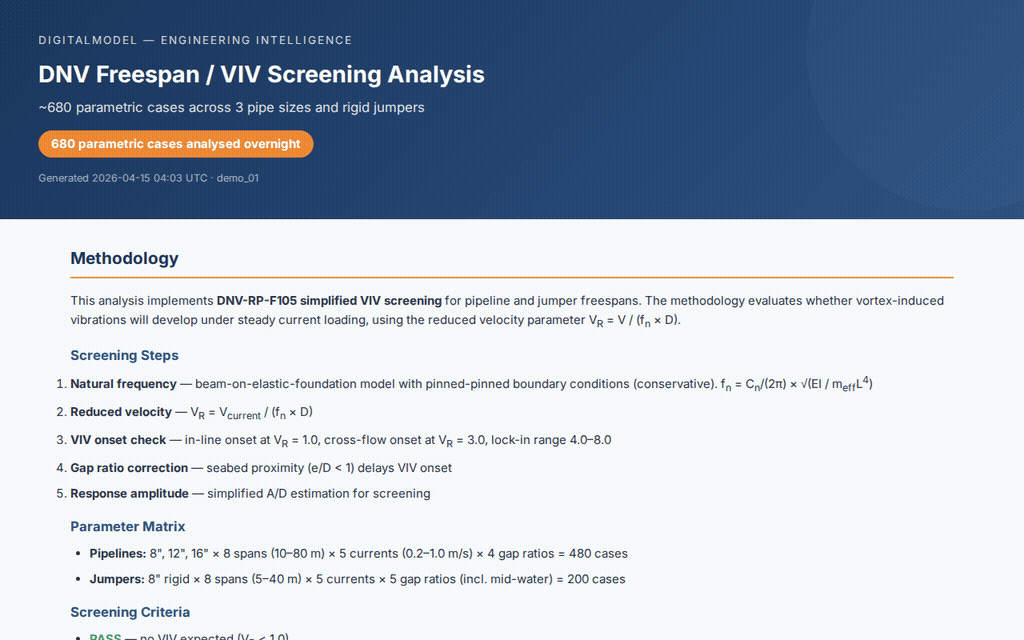

Pipeline Freespan / VIV Screening
DNV-RP-F105 • DNV-RP-F110
Automated screening of pipeline freespans for vortex-induced vibration and static stress. Parametric sweep across 3 pipe sizes, 5 current velocities, and multiple gap ratios — including in-line and cross-flow response.
680 parametric cases
Pipeline Wall Thickness — Multi-Code Comparison
ASME B31.4 • ASME B31.8 • DNV-OS-F101
Burst and collapse wall thickness checks across 6 pipe sizes, 3 design codes, and 4 operating pressures. Automated comparison highlights code-to-code differences and governing cases.
72 parametric cases

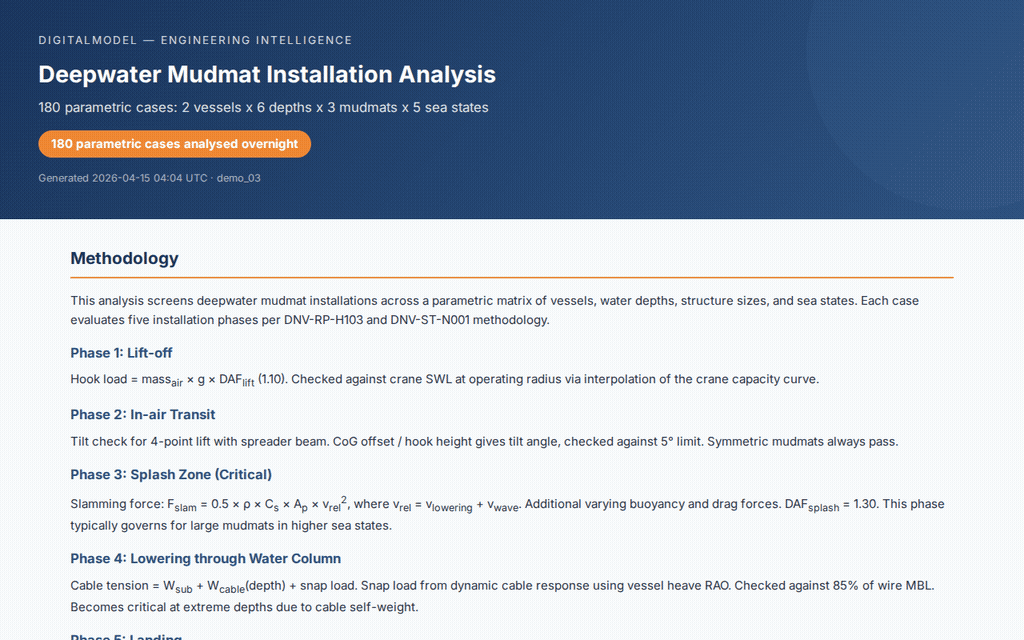

Deepwater Mudmat Installation
DNV-RP-H103 • OrcaFlex time-domain
Time-domain installation analysis for subsea mudmat foundations. Full factorial sweep of 2 vessels, 6 water depths, 3 mudmat sizes, and 5 sea states — with crane tip motions, sling tensions, and operational weather windows.
180 parametric cases

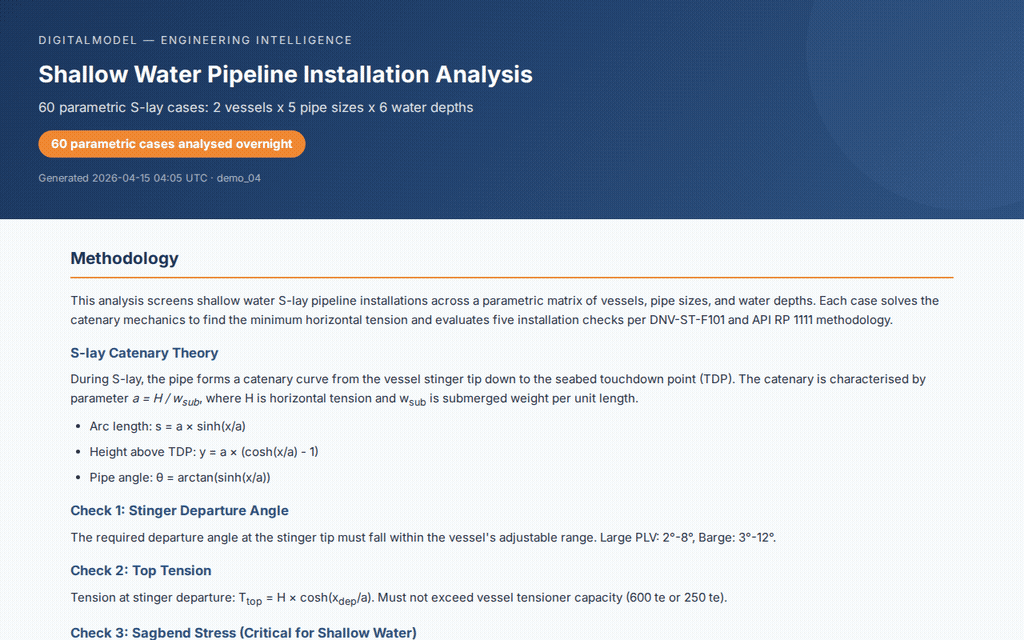

Shallow Water Pipeline Installation (S-lay)
DNV-OS-F101 • OrcaFlex time-domain
S-lay pipeline installation analysis with stinger geometry, vessel RAOs, and departure angle optimisation. Sweep of 2 lay vessels, 5 pipe sizes, and 6 water depths — with sagbend strain, stinger tip departure, and lay tension extraction.
60 parametric cases

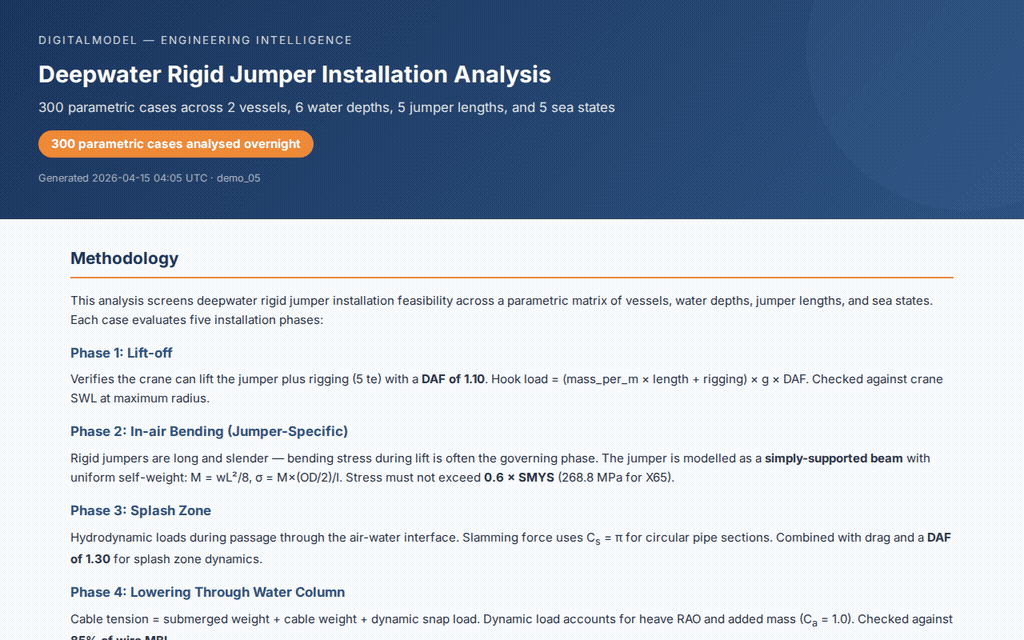

Subsea Jumper Installation
DNV-RP-H103 • OrcaFlex time-domain
Deepwater rigid jumper lift and installation analysis. Full factorial sweep across 2 vessels, 6 water depths, 5 jumper lengths, and 5 sea states — with crane utilisation, sling tension, and operational limits for each combination.
Ballymore worked example · 81 tests · 27 sections

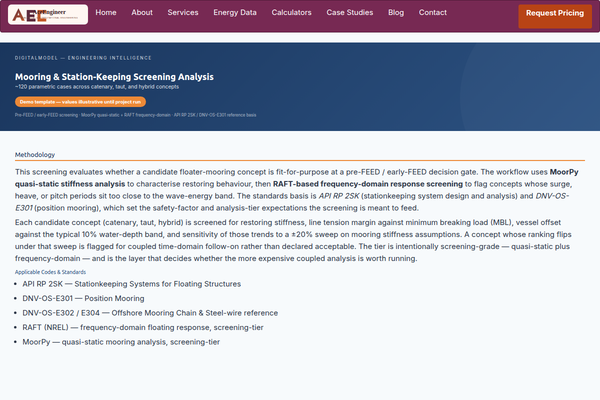

Mooring & Station-Keeping Screening
DNV-OS-E301 • API RP 2SK • quasi-static + frequency-domain
Mooring concept screening across catenary, taut, and hybrid arrangements. Quasi-static stiffness and frequency-domain response trends for early-FEED concept ranking. Page values are illustrative public-reference until a project run is commissioned.
Demo template — awaiting project valuesCross-Demo Comparison
Side-by-side view of the 5 fully rendered overnight demo runs — scope, parametric dimensions, case counts, and automation value at a glance. Demo 06 (mooring) is a template; its parametric run is generated per prospect on submission.
How It Works
Every demo follows the same auditable, repeatable pipeline.
1. Declarative Input
You provide a YAML spec with your design matrix — pipe sizes, water depths, sea states, vessel data. No code changes required.
2. Automated Analysis
digitalmodel runs the parametric sweep overnight: code-checked calculations, OrcaFlex batch runs, post-processing, and validation against international standards.
3. Auditable Output
Results arrive as interactive HTML reports with plotted data, governing cases highlighted, and full traceability to the standard clause.
Ready to Automate Your Analysis?
Send us your design matrix. We'll run a pilot analysis overnight and return validated results — free for the first engagement.
Get a Free AssessmentOr email us directly: support@aceengineer.com
